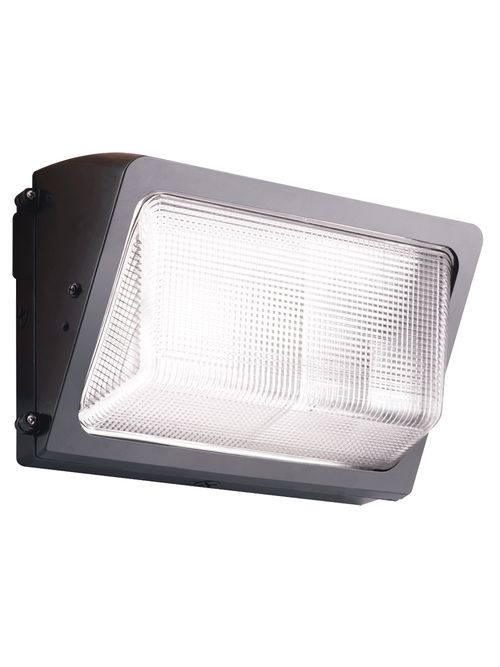

RAB WP2H150QT 150 W 120/208/240/277 Volt 14 x 7-1/4 x 9 Inch Quad Tap Bronze HID Wall Pack
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$274.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rab Electric Mfg
Mfg Catalog # WP2H150QT
World Electric Part # 1138

Features

  • Precision die cast aluminum housing with durable polyester powder coating
  • Tempered Glass Refractor and Tempered Glass Lens
  • Drilling template for easy box mounting
  • Silicone gasket remains in place during relamping
  • Top, side and back conduit openings
  • Cutoff Glare Shield for Friendly Lighting
  • Long life lamp included

Specifications

Performance

  • Watts: 150W
  • Lumens: 12,500
  • Efficacy: 67.6 lm/W
  • Color Accuracy: CRI
  • L70 Lifespan: 0 hours
  • Type: CWA-HPF QT
  • 120V: 1.1/1.6A
  • 208V: .6/.9A
  • 240V: .5/.8A
  • 277V: .5/.7A
  • Input Watts: 185.00W

Dimensions

  • Weight: 17.8 lbs

Listings

  • UL Listing: Suitable for wet locations. HID fixtures can be wired with 90°C supply wiring if supply wires are routed 3" away from the ballast.

Construction

  • Housing: Die cast aluminum, 1/2" NPS tapped holes top, both sides and back for conduit or photocontrol. Hinged refractor frame. Continuous silicone rubber gasket.
  • Reflector: Specular anodized aluminum, removable for installation. Symmetrical light pattern maximizes distance between fixtures.
  • Cutoff Lens: Tempered glass
  • Finish: Formulated for high durability and long-lasting color

Optical

  • Refractor: Prismatic optics designed to minimize glare and throw light down and out. Heat resistant borosilicate glass.

Electrical

  • Quad Tap: Fixture works with 120, 208, 240 and 277 Volts

Other

  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981318286
Product Description WALLPACK 150W MH QT HPF GLASS LENS AND LAMP BRONZE
GTiN 00019813182865
Finish White
Type WALLPACK
Mounting Type 15
Weight 17.8 lb
Wattage 150 Watt
Lumens 12500 lm
Family Brand Name Rab Design Lighting
Lamp Type ED17
Ballast Type CWA-HPF QT
Amperage 0.7 Amp
Input Wattage 185.00 W
Efficacy 67.6 LPW
Voltage 120/277 Volt
