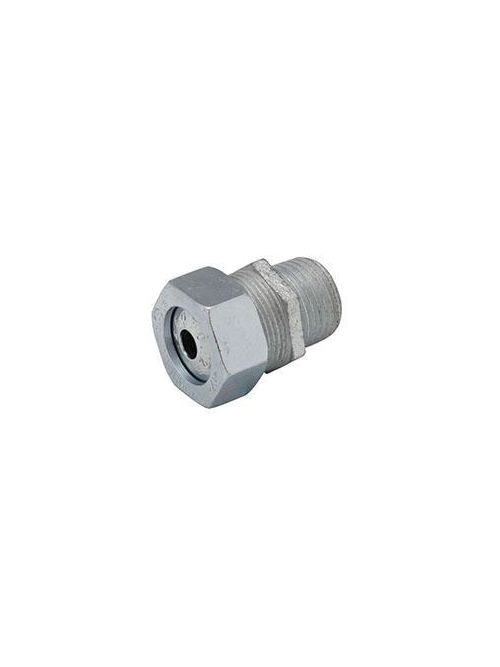

RACO 3702-5 1/2 Inch Threaded 0.375 to 0.5 Inch Zinc Electroplated Steel Form 2 Straight Strain Relief Cord Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,062.99/c (100 ea)
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Raco Manufacturing
Mfg Catalog # 3702-5
World Electric Part # 2434

Features

  • All steel/malleable construction provides mechanical strength
  • Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
  • Washers have size range imprinted for identification - eliminates misidentifying inventory
  • Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel
  • All metallic components are zinc electroplated for corrosion protection
  • UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
  • 3/8 in. to 1 in. Steel, 1-1/4 in. to 1-1/2 in. Malleable Iron bodies and nuts
  • Additional sizes available

Specifications

  • Buy American Compliant: Contact Manufacturer
  • Country of Origin: CN
  • Dimensions: 1.469 in x 1.188 in x 1.188 in
  • Each - Height: 1.188 in
  • Each - Length: 1.469 in
  • Each - Width: 1.188 in
  • Hazardous Rating(s): Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
  • Height: 1.188 in
  • Length: 1.469 in
  • Product Type: Commercial Fittings
  • Environmental Conditions: Wet Location
  • Size: 1.469 in x 1.188 in x 1.188 in
  • Standard: cULus Listed
  • Width: 1.188 in

Certifications

  • Certified Listed: cULus Listed
  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 05016937025
Product Description 1/2 in. Hubs - Form 2 Liquidtight Strain Relief Cord Connector, Cable Range .375 - .500
GTiN 00050169370254
Length 1.469 in
Finish Zinc Plated
Width 1.188 in
Size .5 hub form 2
Color Silver
Type Liquidtight strain relief cord connector, straight
Material 3702-5
Applications Electrical
Height 1.188 in
Weight 0.178 lb
Connection Type Strain-Relief
Family Brand Name Raco
