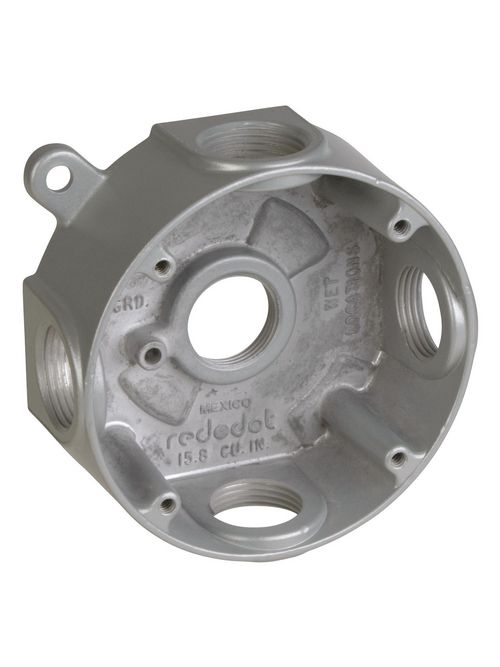

Red Dot S-48 5-Hole 3/4 Inch Round Outlet Box with Lugs
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,258.99/c (100 ea)
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Red Dot / Thomas & Betts
Mfg Catalog # S-48
World Electric Part # 1548

Features

  • Precision cast and machined surfaces permit safer wire pulling.
  • Deep slotted stainless steel cover screws for faster installations.
  • Junction box for branch conduits.
  • Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Clean cover edges provide good gasket sealing.
  • Clear UL and cubic content markings speed approval by inspectors.

General

  • Material: Die Cast Aluminum
  • Finish: Aluminum Lacquer
  • Volume (cu.in.): 17
  • Color: Silver

Dimension Information

  • Diameter (inches): 4 1/8
  • Hub Size (inches): 3/4

Packaging

  • Package Width: 8.7
  • Package Height: 10.6
  • T&B Sold in UOM: Each
  • Order Multiple: 1
  • T&B Weight Per UOM: 0.68 lbs. Each
  • Package Length: 13.2
  • Outer Package: 36
  • Inner Package: 1

Application Support

Notes

  • Rain tight when used with appropriate Red Dot covers.

Certifications

  • RoHS Compliance: Yes
  • UL

Overview

UPC 04226971848
Product Description Round Outlet Box, 15.8 Cubic Inches, Diameter 3-15/16 Inch, Depth 1-5/8 Inch, Hub Size 3/4 Inch, Silver, Aluminum, with 5 Outlets, Four on the Sides and One in Back, Mounting Lugs, and 4 Closure Plugs, Pack of 36
GTiN 05414363936596
Finish Untreated
Color Silver Gray
Type 5-Outlet, Round, 5-Inlet, 5-Hole
Diameter 4-1/8 in
Material Die-Cast Aluminum
Mounting Type Screw, Wall, Ceiling
Depth 41.3 mm
Family Brand Name Red Dot
Cable Entry (5) 3/4 in Threaded Hole
