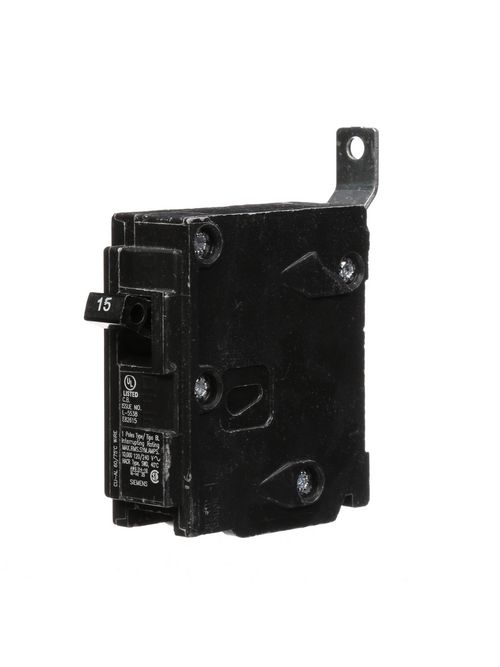

Siemens Industry B115 1-Pole 15 Amp 120 Volt 10 K Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$31.79/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B115
World Electric Part # 1768

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 15 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 1
  • Design of the product: BL
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.5625 in
  • Width [in]: 1 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 12AWG (CU) / 12 - 10AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326341
Product Description Molded case circuit bolt-on breakers for panelboard mounting with insta-wire in 3 types of tripping speed BL=10KA, BLH=22KA, HBL=65KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 240vac.
GTiN 00783643263413
Length 3 in
Width 1 in
Operating Temperature N/A
Voltage 120 Volt
Type BL
Applications Electrical Distribution
Depth 3 in
Height 3.562 in
Connection Type Bolt-On
Family Brand Name Siemens
Frame N/A
TC Connection BOLT-ON
Actuator Switch Position Knob
Blade Dimensions 3 in L x 3 in W x 1 in H
Trip Type Thermal Magnetic
Number of Poles 1 Pole
Load Rating N/A
Interrupt Rating 10 kA
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
