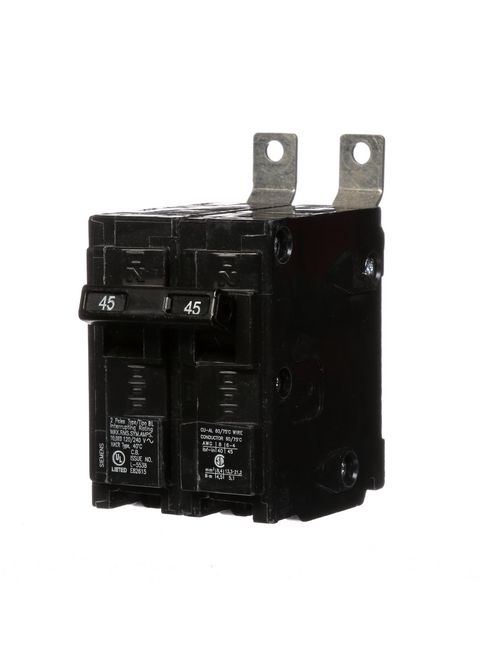

Siemens Industry B245 2-Pole 45 Amp 120/240 Volt 10 K Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$72.99/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B245
World Electric Part # 2435

Features

  • 10K AIC series rating
  • Panel board mounting
  • Time saving insta-wire feature
  • HACR rated
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 45 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: BL
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.5625 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 8 - 6AWG (CU) / 8 - 4AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326358
Product Description Siemens BL breakers provide easy bolt-on connections in Siemens panelboards. Siemens offers 3 AIC ratings for these breakers: BL at 10K AIC, BLH at 22K AIC, and HBL at 65 K AIC. They are available in 10-125 Amp, with 1, 2 and Triple Poles. All circuit breakers are designed to sense when an over current occurs, measure the amount of over current and lastly, act by tripping quickly enough to prevent damage to itself and associated conductors.
GTiN 00783643263581
Length 3 in
Width 2 in
Operating Temperature N/A
Voltage 120/240 Volt
Type BL
Applications Electrical Distribution
Depth 3 in
Height 3.562 in
Connection Type Bolt-On
Family Brand Name Siemens
Frame N/A
TC Connection BOLT-ON
Actuator N/A
Trip Type N/A
Number of Poles 2 Pole
Load Rating N/A
Interrupt Rating 10 A
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
