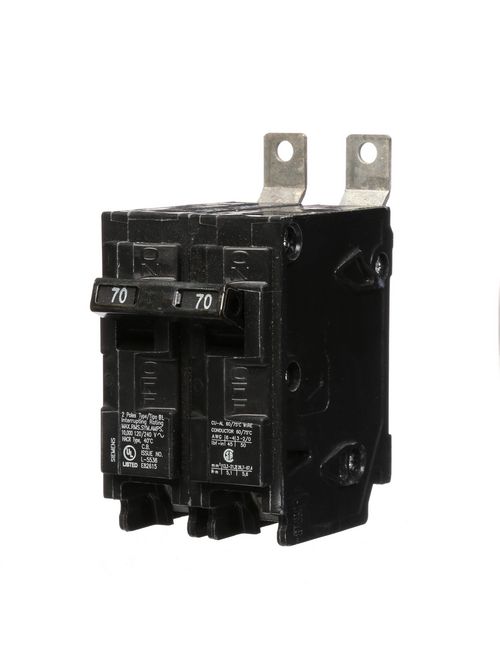

Siemens Industry B270 2-Pole 70 Amp 120/240 Volt 10 K Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$138.99/ea
1 Available for Delivery
Order by 04:00pm Monday for Delivery Tuesday
1 Available for Pickup at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # B270
World Electric Part # 1487

Features

  • 10K AIC series rating
  • Panel board mounting
  • Time saving insta-wire feature
  • HACR rated
  • UL listed

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 70 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: BL
  • Size of the circuit-breaker: BL (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 8 - 4AWG (CU) / 8 - 2AWG (AL)
  • Type of mounting panel: PANELBOARD

Overview

UPC 78364326361
Product Description Molded case circuit LOW TAB bolt-on breakers for panelboard mounting with insta-wire in 3 types of tripping speed BL=10KA, BLH=22KA, HBL=65KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 240vac.
GTiN 00783643263611
Length 3 in
Width 2 in
Operating Temperature N/A
Voltage 120/240 Volt
Type BL
Applications Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
Frame N/A
TC Connection BOLT-ON
Actuator Switch Position Knob
Blade Dimensions 3 in L x 3 in W x 2 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Load Rating N/A
Interrupt Rating 10 kA
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
