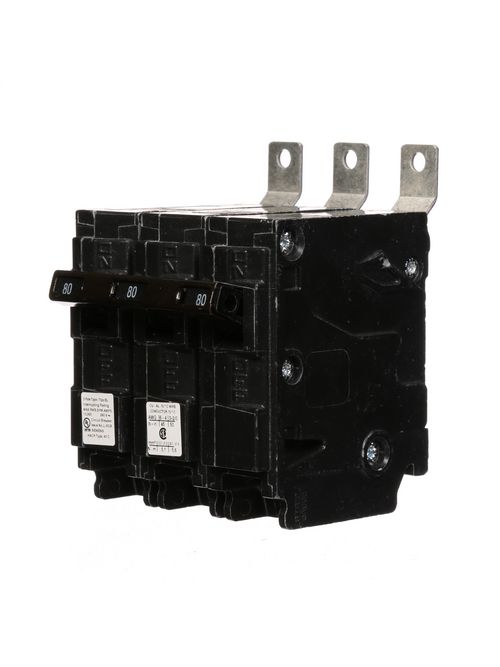

Siemens Industry B380 3-Pole 80 Amp 240 Volt 10 K Circuit Breaker

$327.99/ea

Usually ships within 8 to 12 Days

Not Available at Jacksonville, FL

Available at These Locations

Adding...

Already a Customer? Log in to view your pricing

Specifications

Standard: UL LISTED / CSA / NOM CERTIFIED
Continuous current rated value: 80 A
Voltage between phase and phase rated value: 240 V
Supply voltage frequency rated value 50/60 Hz: TRUE
Suitability for operation: ELECTRICAL DISTRIBUTION
Number of poles: 3
Design of the product: BL
Size of the circuit-breaker: BL (125A)
Design of the overload release: THERMAL - MAGNETIC
Height [in]: 3.75 in
Width [in]: 3 in
Depth [in]: 3 in
Product feature: 10kA INTERRUPT
Type of electrical connection: BOLT-ON
Product brand name: SIEMENS
Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 4 - 1/0AWG (CU) / 2 - 1/0AWG (AL)
Type of mounting panel: PANELBOARD

UPC	78364326378
Product Description	Molded case circuit LOW TAB bolt-on breakers for panelboard mounting with insta-wire in 3 types of tripping speed BL=10KA, BLH=22KA, HBL=65KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 240vac.
GTiN	00783643263789
Length	3 in
Width	3 in
Operating Temperature	N/A
Voltage	240 Volt
Type	BL
Applications	Electrical Distribution
Depth	3 in
Height	3.75 in
Connection Type	Bolt-On
Family Brand Name	Siemens
Frame	N/A
TC Connection	BOLT-ON
Actuator	N/A
Blade Dimensions	3 in L x 3 in W x 3 in H
Trip Type	K-Curve, Thermal Magnetic
Number of Poles	3 Pole
Load Rating	N/A
Interrupt Rating	10 kA
Enclosure	N/A
Trip Range	Thermal Magnetic
Sub Brand	N/A
