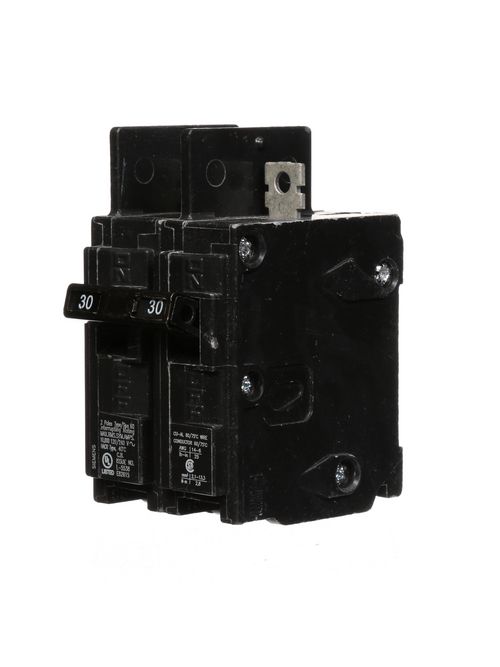

Siemens Industry BQ2B030 2-Pole 30 Amp 120/240 Volt 10 K Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$119.99/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BQ2B030
World Electric Part # 475

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 30 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: BQ
  • Size of the circuit-breaker: BQ (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.75 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: MECHANICAL LUGS
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 6AWG (CU) / 12 - 6AWG (AL)
  • Type of mounting panel: OEM PANELS

Overview

UPC 78364310242
Product Description Molded case circuit bolt-on breakers for loadcenter mounting with insta-wire in 2 types of tripping speed BQ=10KA, BQH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 240vac and 3 poles common trip 240vac.
GTiN 00783643102422
Length 4.000
Width 2 in
Operating Temperature N/A
Voltage 120/240 Volt
Type BQ
Applications Electrical Distribution
Depth 3 in
Height 3.75 in
Connection Type Bolt-On
Family Brand Name Siemens
Frame N/A
TC Connection BOLT-ON
Actuator Switch Position Knob
Blade Dimensions 4 in L x 3 in W x 2 in H
Trip Type Thermal Magnetic
Number of Poles 2 Pole
Load Rating N/A
Interrupt Rating 10 kA
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
