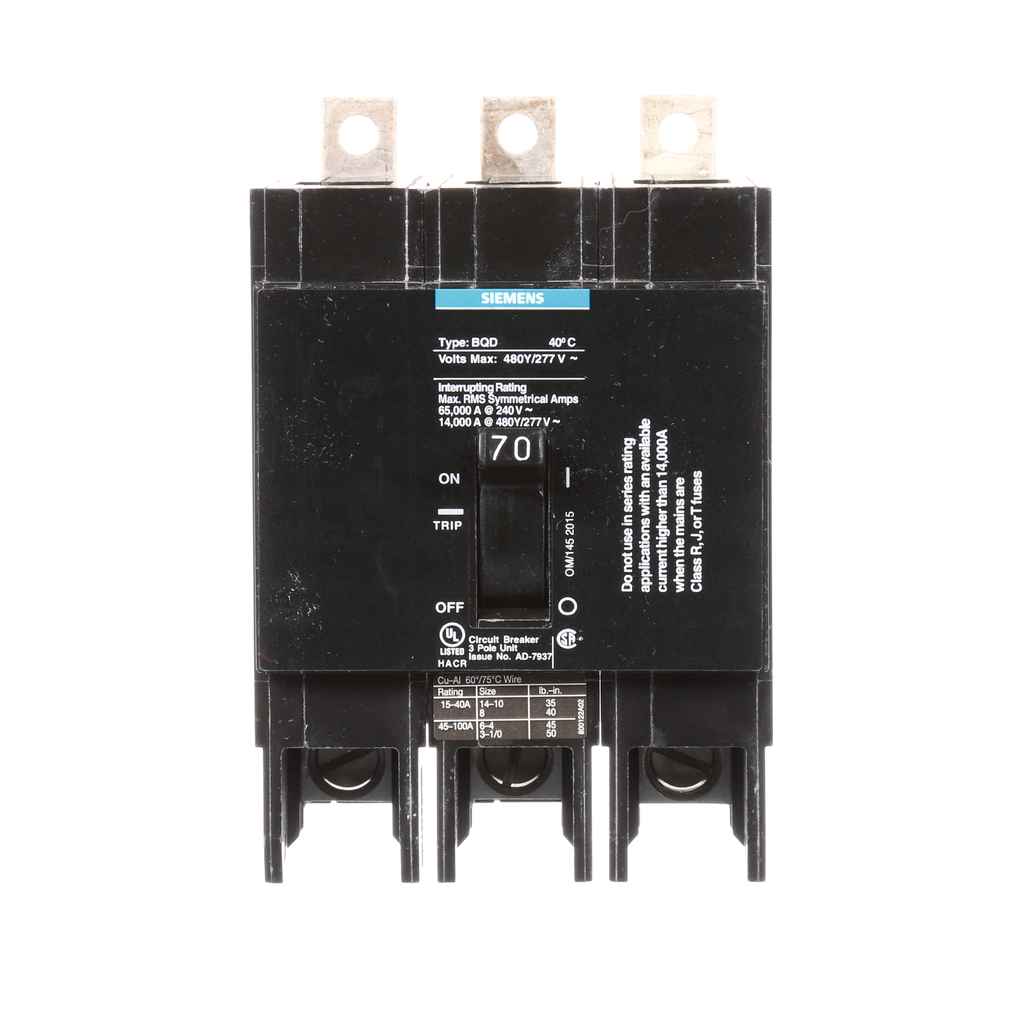

Siemens Industry BQD370 3-Pole 70 Amp 480 VAC 14 kA Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$532.95/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # BQD370
World Electric Part # 617

Features

  • 14K AIC series rating
  • 480Y/277AC
  • HACR rated
  • UL listed

Specifications

  • Design of the product: BQD
  • Size of the circuit-breaker: 100A
  • Type of electrical connection: LOW TAB
  • Standard: UL 489 CSA-C22.2
  • Suitability for operation: CONSTRUCTION
  • Product brandname: SIEMENS
  • Material of the enclosure: MOLDED CASE CIRCUIT BREAKER
  • Design of the overload release: THERMAL MAGNETIC TRIP UNIT
  • Special product feature: PANELBOARD MOUNT
  • Height [in]: 3 in
  • Width [in]: 3 in
  • Depth [in]: 5 in
  • Number of poles: 3
  • Continuous current rated value: 70 A
  • Supply voltage frequency rated value 50/60 Hz: Yes

Overview

UPC 78364327743
Product Description Siemens General Application Circuit Breakers are industrial design thermal-magnetic breakers with valuable features for the global market. It features breakers that are well suited for OEM designed equipment in both light commercial and industrial applications. BQD breakers are 100 Amp frame panelboards mounting circuit breakers from 15 Amp to 100 Amp. It also comes in single, double and triple pole.
GTiN 00783643277434
Length 5.000
Width 3 in
Operating Temperature 40 C
Voltage 480/277 Volt
Type BQD
Material Molded Case Circuit Breaker
Applications CONSTRUCTION
Depth 5 in
Height 3 in
Frequency 50/60 Hz
Connection Type Low Tab
Family Brand Name Siemens
Frame 100A
TC Connection LOW TAB
Enclosure Material MOLDED CASE CIRCUIT BREAKER
Trip Type THERMAL MAGNETIC TRIP UNIT
Number of Poles 3 Pole
Interrupt Rating 14 kA
