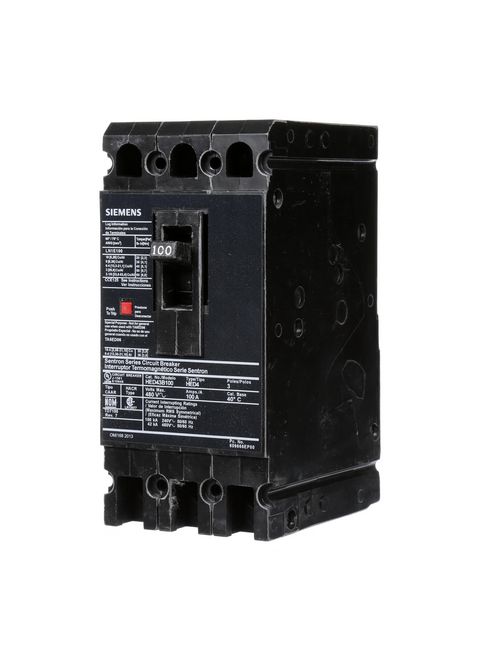

Siemens Industry HED43B100 480 Volt 100 Amp 42 kaic 3-Pole Circuit Breaker with LD Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$2,629.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # HED43B100
World Electric Part # 1845
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. 100A3-POLE (42KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.

Overview

UPC 78364321021
Product Description SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. 100A3-POLE (42KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
GTiN 00783643210219
Length 4.000
Width 6.000
Operating Temperature 40 C
Voltage 480 Volt
Type HED4
Applications Standard 40C Breaker
Height 7 in
Standard HACR
Frequency 50/60 Hz
Family Brand Name Siemens
Frame ED
TC Connection N/A
Actuator Varying
Amperage 100 Amp
Trip Type Thermal-Magnetic
Number of Poles 3 Pole
Load Rating N/A
Interrupt Rating 42 kA
Enclosure Varying
Trip Range N/A
Sub Brand Sentron
