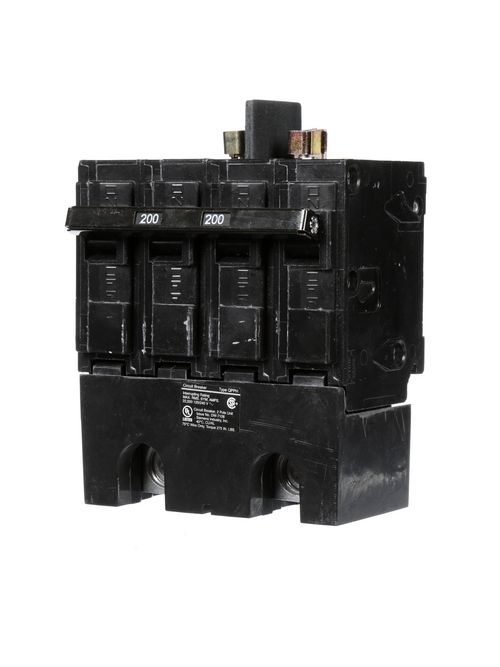

Siemens Industry Q2200BH 2-Pole 120/240 VAC 200 Amp 22 kA Common Trip Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$491.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q2200BH
World Electric Part # 1137

Features

  • An exclusive side wired design saves wiring space and eliminates difficult "S bends"
  • Single right hand bend wiring - saves time and wire
  • Provides 100K AIC flexibility from 100 up to 225 Amp
  • UL listed
  • For use in multi-family metering products

Specifications

  • Design of the product: QN
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Design of the overload release: Thermal Magnetic
  • Number of poles: 2
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Height [in]: 3 in
  • Depth [in]: 9 in
  • Width [in]: 6 in
  • Continuous current rated value: 175 A

Overview

UPC 78364314886
Product Description Circuit breakers are intended for switching and protection of your home's wiring from high temperatures caused by excess current higher than the rating of the wire. While thermal-magnetic circuit breakers are the key element for overload and short-circuit protection of your electrical system, there are potentially dangerous conditions that do not involve over current.
GTiN 00783643148864
Length 9 in
Width 6 in
Operating Temperature N/A
Voltage 120/240 Volt
Type QN
Applications ElectricalDistribution
Depth 9 in
Height 3 in
Connection Type Plug-In
Family Brand Name Siemens
Frame N/A
TC Connection PLUG-IN
Actuator N/A
Trip Type ThermalMagnetic
Number of Poles 2 Pole
Load Rating N/A
Interrupt Rating 22 A
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
