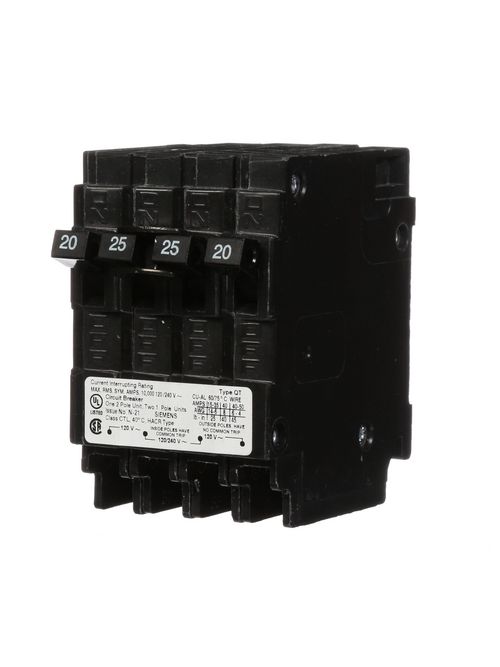

Siemens Industry Q22025CT 1/2-Pole 120/240 VAC 20/25 Amp 10 kA Plug-In Common Trip Triplex Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$50.29/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q22025CT
World Electric Part # 1713

Features

  • One 25 Amp double pole and two 20 Amp single pole circuit breakers
  • Triplex 1/2 in. frame
  • Plug in type
  • Space saving design allows 2 poles to fit in a 1 in. panel space
  • 10K AIC series rating
  • 120/240 VAC
  • UL listed
  • CSA certified
  • HACR rated
  • Designed for residential/commercial applications

Specifications

  • Design of the product: QT
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Height [in]: 3 in
  • Depth [in]: 3 in
  • Width [in]: 2 in

Overview

UPC 78364326339
Product Description Siemens Triplex Type QT breakers are a 1/2 in. frame per pole and are suitable for use in Siemens panels that allow CTL type QT breakers. This Breaker has (2) 20 Amp Single Pole(s) Breakers and (1) 25 Amp Double Pole Breaker in one 2 in. housing. Siemens strongly recommends against the use of used breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel. Siemens does not sell used breakers and has not approved any 3rd party sellers to do so. Siemens type QT dual circuit breakers are 1 in. wide and consist of (2) 1-pole breakers, in varying combinations of ampere ratings from 15 to 30 Amp. Type QT quad circuit breakers are 2 in. wide and consist of either (1) 2-pole and (2) 1-pole, or (2) 2-pole breakers. 2-pole constructions range from 15-50 Amps and are available with internal common trip. All type QT circuit breakers are plug-in style and load terminals are provided with the units. They are rated for 120/240-Volt AC and calibrated for 40C max
GTiN 00783643263390
Length 3 in
Width 2 in
Operating Temperature N/A
Voltage 120/240 Volt
Type QT
Applications ElectricalDistribution
Depth 3 in
Height 3 in
Connection Type Plug-In
Family Brand Name Siemens
Frame N/A
TC Connection PLUG-IN
Actuator N/A
Trip Type N/A
Number of Poles 2-1 Pole
Load Rating N/A
Interrupt Rating 10 A
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
