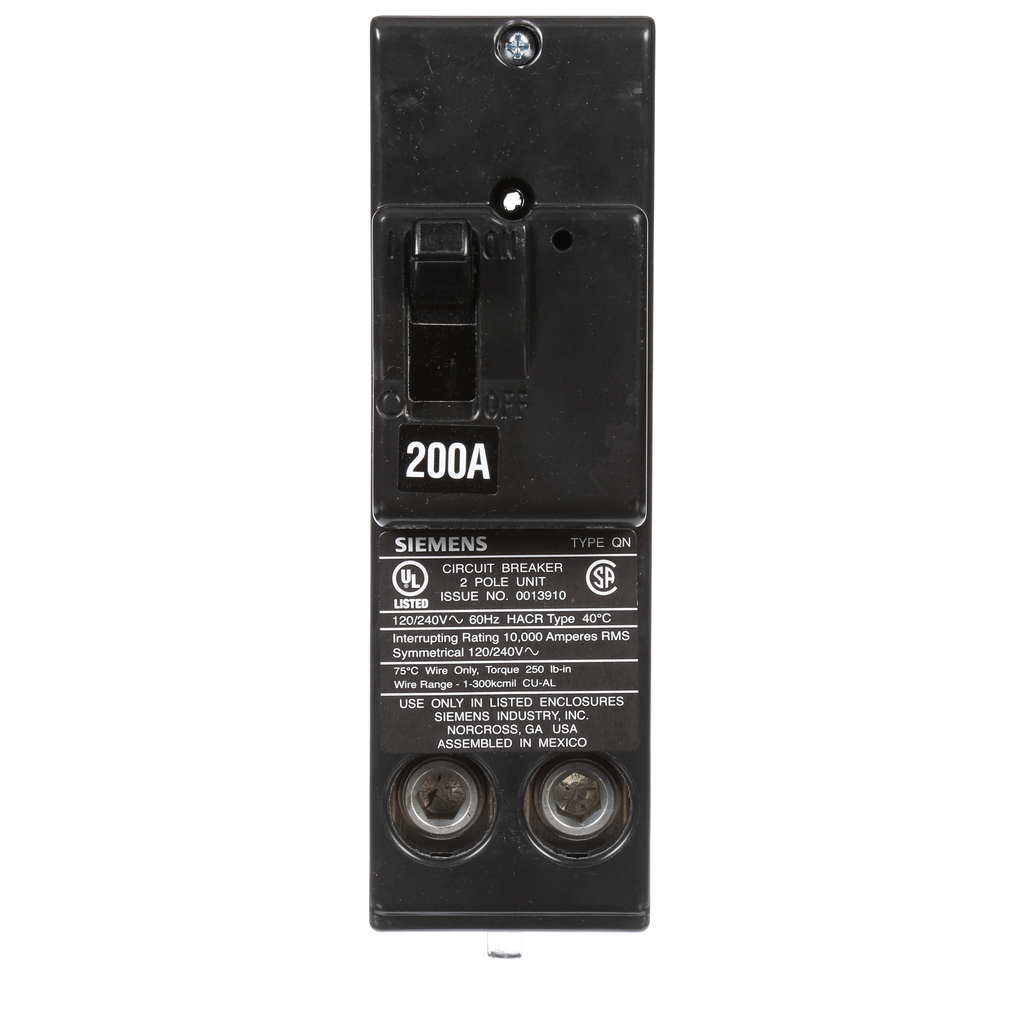

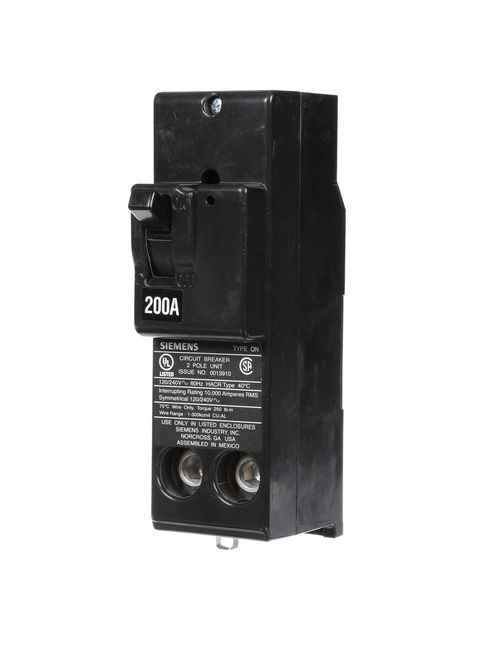

Siemens Industry QN2200 2-Pole 200 Amp 120/240 Volt 10 K Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$139.99/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # QN2200
World Electric Part # 266

Features

  • Designed for Siemens circuit-breaker enclosures and metering applications
  • #1-300 kcmil wire range compatible with copper and aluminum conductors
  • 200 Amp 120/240 VAC, 10,000 AIC rating
  • Meets UL, CSA and ANSI safety requirements
  • Wire range #1-300 kcmil Cu/Al shunt trip available, use 00S01 suffix for ordering
  • Padlocking device available, use catalog number QLN3

Specifications

  • Design of the product: HQSH
  • Type of electrical connection: PLUG-IN
  • Standard: UL 489
  • Suitability for operation: Electrical Distribution
  • Product brandname: SIEMENS
  • Design of the overload release: Thermal Magnetic
  • Number of poles: 2
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Height [in]: 3 in
  • Depth [in]: 9 in
  • Width [in]: 6 in
  • Continuous current rated value: 125 A

Overview

UPC 78364320429
Product Description The Siemens 200 Amp Double-Pole Circuit Breaker provides a 120/240 VAC, 10,000 AIC rating for placement in Siemens brand circuit-breaker enclosures and metering installations. This circuit breaker offers a #1-300 kcmil wire range compatible with copper and aluminum conductors. The plug-in design of this breaker allows for quick and easy installation.
GTiN 00783643204294
Length 9 in
Width 6 in
Operating Temperature N/A
Voltage 120/240 Volt
Type HQSH
Applications ElectricalDistribution
Depth 9 in
Height 3 in
Connection Type Plug-In
Family Brand Name Siemens
Frame N/A
TC Connection PLUG-IN
Actuator N/A
Trip Type ThermalMagnetic
Number of Poles 2 Pole
Load Rating N/A
Interrupt Rating 10 A
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
