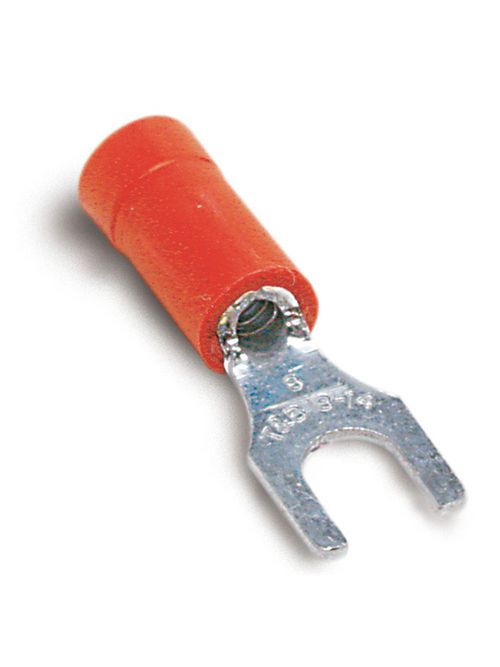

Thomas & Betts 18RA-8F 22 to 16 AWG #8 Stud Red Electrotinned Copper Vinyl Insulated Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$127.99/c (100 ea)
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 18RA-8F
World Electric Part # 1265

Specifications

Ordering

  • EAN: 5414363138600
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .005 lb2.268 g

Container Information

  • Package Level 1 Units: 100 piece
  • Package Level 2 Units: 500 piece
  • Package Level 2 Width: 9.4 in239 mm
  • Package Level 2 Height: 9 in229 mm
  • Package Level 2 Depth / Length: 15 in381 mm
  • Package Level 3 Units: 5000 piece
  • Package Level 3 Width: 7.1 in180 mm
  • Package Level 3 Height: 8.89 in226 mm
  • Package Level 3 Depth / Length: 10.6 in269 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Red
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Fork Terminal
  • Special Functions: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
  • Standards: UL E9809
  • UPC: 786210800899
  • Voltage Rating: 600 V
  • Wire Size: 22-16 AWG

Classifications

  • ETIM 6: EC001052 - Solderless copper terminals for copper conductors
  • ETIM 7: EC001052 - Solderless copper terminals for copper conductors
  • UNSPSC: 39121432
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals

Overview

UPC 78621080089
Product Description Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
GTiN 05414363138600
Finish Tin Plated
Color Red
Type Long Sleeve
Barrel Type Brazed Seam
Material Copper
Stud Size #8
Conductor Size 22-16 AWG
Wire Size 22-16 AWG
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
Width 9.4 in
Voltage 600 Volt
Thickness .03 in
Insulation Type Insulated Vinyl
Terminal Type RA
Height 9 in
Standard UL E9809
Temperature Rating 105 C
Flamability Class Rated V-0 Per UL94
