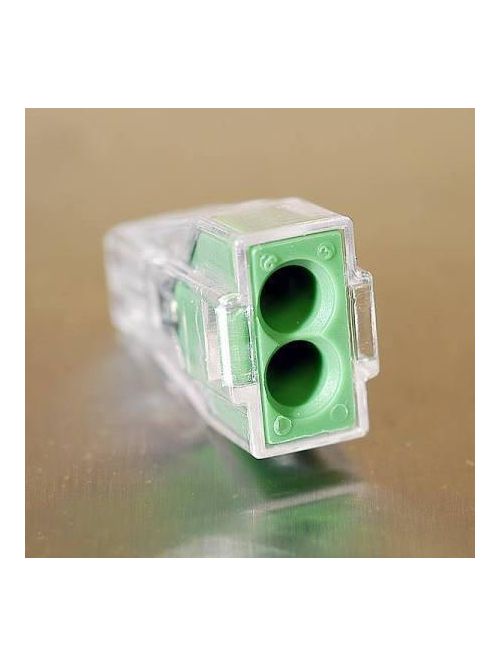

WAGO 773-112 12 to 16 AWG 2-Conductor Push-In Wire Connector
Product image thumbnail 0
Product image thumbnail 1
$15.11/ea
Usually available within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Wago
Mfg Catalog # 773-112
World Electric Part # 1278

Features

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.

Approvals

  • Bureau Veritas S.A., BV, 11914/D0 BV, EN 60998
  • UL International Germany GmbH, UL, D-03479-A1, EN 60998
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
  • American Bureau of Shipping, ABS, 18-HG1755093-PDA
  • UL International Demko A/S, CCA, CCA-DK No. 2520, EN 60998
  • DEKRA Certification B.V., CSA, 15411 (LR46759), C22.2
  • Lloyds Register, LR, 04/20013 (E8), EN 60998
  • UL International Germany GmbH, UL, E201573, UL 467

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (II/2): 400 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 24 A
  • Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection Data

  • Connection technology: PUSH WIRE®
  • Actuation type: Push-in
  • Connectable conductor materials: Copper || Aluminum
  • Solid conductor: 0.75 … 2.5 mm² / 18 … 12 AWG
  • Stranded conductor: 1.5 … 2.5 mm² / 16 … 12 AWG
  • Strip length: 12 mm / 0.47 inch
  • Total number of connection points: 2
  • Total number of potentials: 1
  • Wiring type: Side-entry wiring

Physical Data

  • Width: 9.2 mm / 0.362 inch
  • Height: 13.1 mm / 0.516 inch
  • Depth: 19.5 mm / 0.768 inch

Material Data

  • Color: Multicoloured
  • Cover color: Green
  • Flammability class per UL94: V2
  • Fire load: 0.037 MJ
  • Weight: 1.847 g

Environmental Requirements

  • Surrounding air temperature (operation): 60 °C

Commercial Data

  • Packaging type: BOX
  • Country of origin: CN
  • GTIN: 4044918397773
  • Customs tariff number: 85369010000

Overview

UPC 04491880575
Width 0.362 in
Conductor Size 12 AWG
Depth 0.768 in
Height 0.516 in
Weight 1.847 g
Country of Origin China
Strip Length 0.47 in
Family Brand Name Wago
Conductor Material Aluminum,Copper
Flamability Class V2
Actuator Push-button
Current 24 A
Number of Connections 2
Color Multicoloured
